Holiday Ornament

• Blinks a pattern; given to family and friends!

• Designed the board and the software.

• Assembled using solder paste, stencil, and reflow oven.

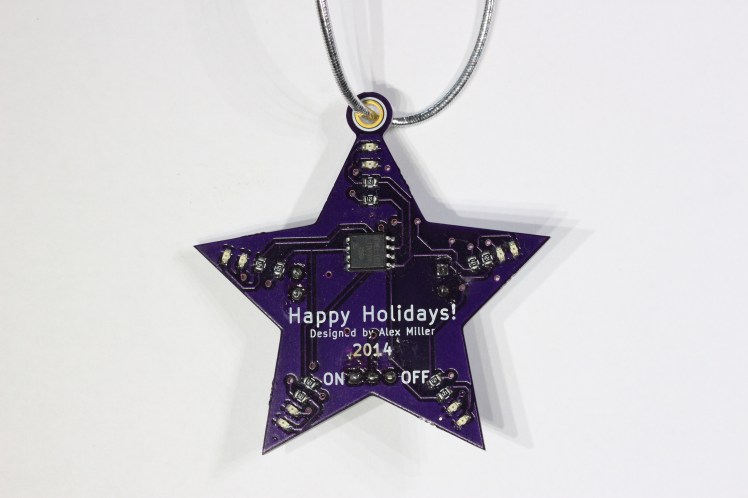

Finished product:

img_7126

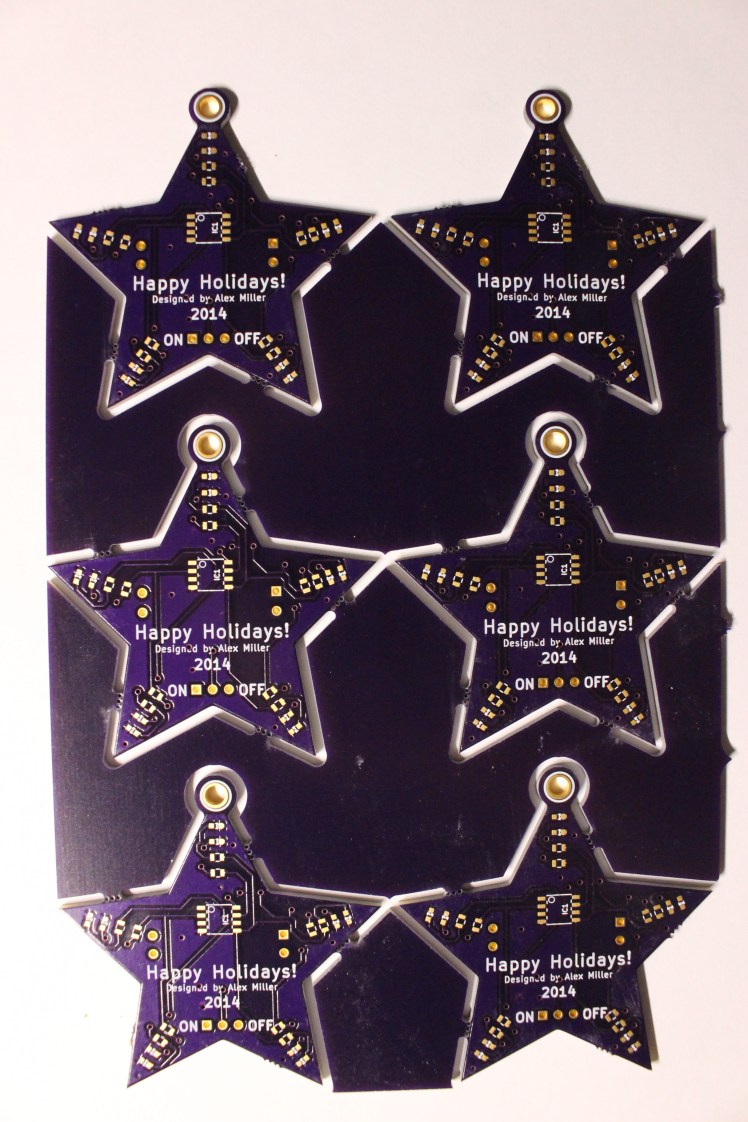

One of the board panels, from the manufacturer:

img_7984

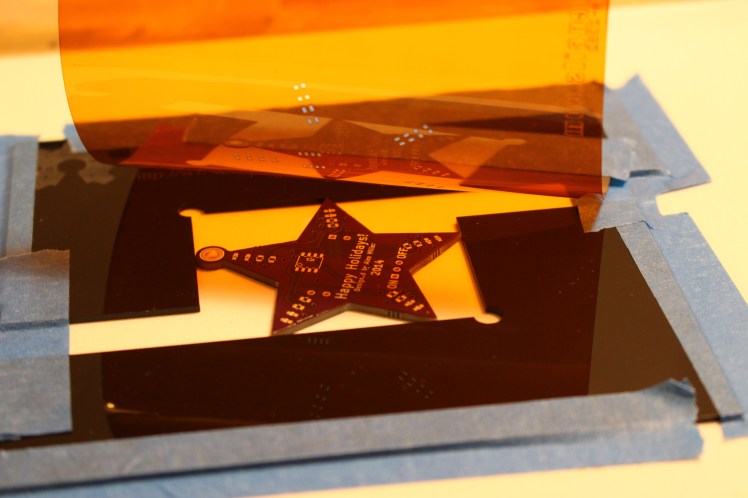

Soldering using a stencil, solder paste, jig, and wiper:

img_8003
